Gearboxes: Precision Power Transmission Systems
Product Heading
Product Heading
Product Heading
Gearboxes are sophisticated mechanical devices engineered to manipulate the rotational characteristics of shafts, primarily by decreasing speed and amplifying torque. These precision components play a pivotal role in optimizing power transmission across diverse industrial applications.
Core Functionality
- Speed Reduction: Gearboxes decrease the rotational velocity of an input shaft, allowing for more controlled and precise output motion.
- Torque Amplification: As speed decreases, torque (rotational force) increases proportionally, enhancing the system’s power delivery capabilities.
Technical Principles
Gearboxes operate on the fundamental principle of mechanical advantage. By utilizing gear ratios—the relationship between the number of teeth on interconnected gears—engineers can precisely control the trade-off between speed and torque.
For example, a gear ratio of 10:1 means:
For example, a gear ratio of 10:1 means:
- The output shaft rotates 1/10th the speed of the input shaft
- The output torque is theoretically 10 times greater than the input torque (minus efficiency losses)
Applications and Benefits
Gearboxes are integral in numerous industrial sectors:
- Heavy Machinery: Enhance the lifting capacity of cranes and excavators
- Robotics: Enable precise, high-torque movements in robotic arms
- Wind Energy: Convert high-speed, low-torque turbine rotation into slower, higher-torque output suitable for generators
By optimizing the relationship between speed and torque, gearboxes significantly improve the efficiency, control, and power delivery of mechanical systems across these applications.
Advanced Considerations
Modern gearbox design incorporates sophisticated elements such as:

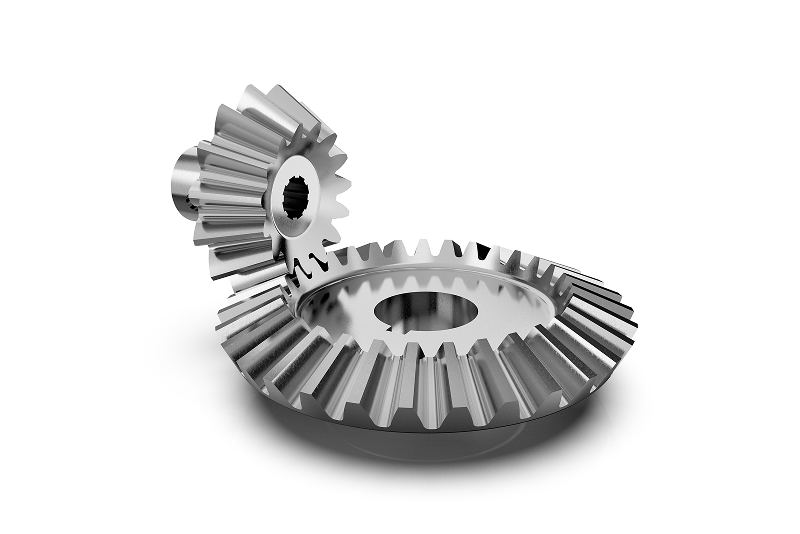

- Helical and bevel gears for smoother operation
- Planetary gear systems for compact, high-reduction ratios
- Advanced lubricants and sealing technologies to enhance durability
Understanding these technical aspects is crucial for engineers and technicians working with power transmission systems, while providing valuable insights for those seeking to grasp the importance of gearboxes in industrial applications.
